PROJECT COMMISSIONED ON 06.08.1997
SILENT FEATURES :-
A. LOCATION:
- State – Karnataka
- District – Shivamogga
- Canal – 26th distributory of Bhadra bank canal
- Type – canal based
- Approach – 35km from Shivamogga
-

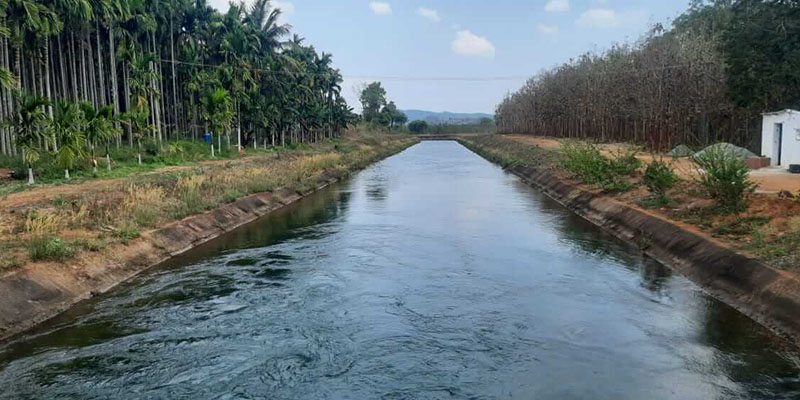

B. POWER CANAL:
- Length -700m
- Type – Trapezoidal
- Material – CC lining
- Design flow – 8.5 cumecs
- Base width – 3.5m
- Bed slope – 1:2000
-

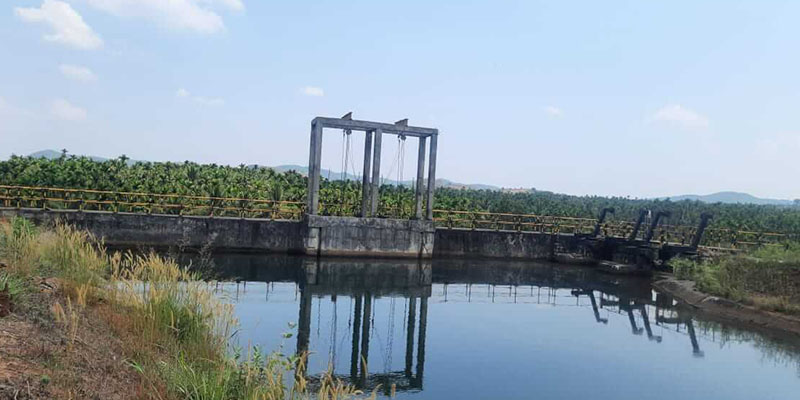

C. FOREBAY:
- Maximum width of Forebay- 20m at bottom and 24m at top
- Length of forebay21m D. PENSTOCK:
- Number – 2
- Material – steel
- Lenght – 40m
- Internal Diameter – 1.5m
-

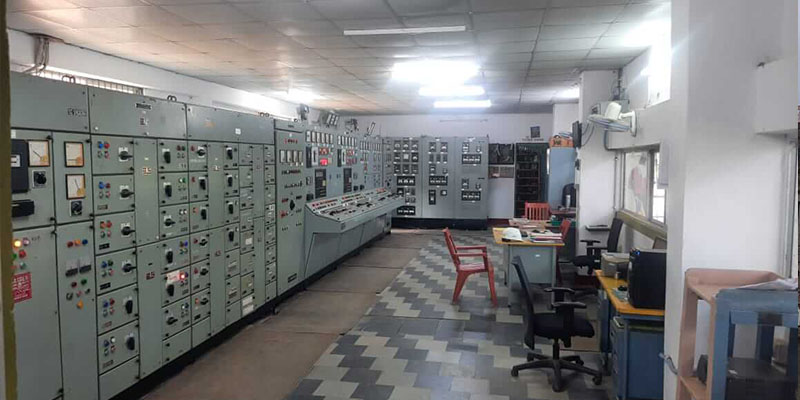

E. POWER HOUSE:
- Location – left side of the Anveri canal
- Installed capacity – 1.5MW (2×0.75MW)
- Power house size – 28mx16m F. TAILRACE CHANNEL:
- Length – 12m
- Base width – 4m
-

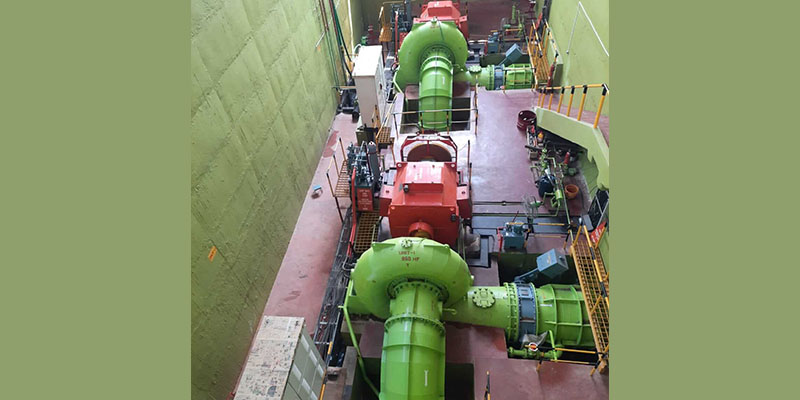

E. TG EQUIPMENT:
G. TG EQUIPMENT:
Turbine number – 2
Type – Francis, horizontal axis
Rated capacity – 1.5MW(2x750kw)
Rated Head – 21m
Rated Flow – 4.25 cumecs
Generator number – 2
Type – synchronous
Rated output – 750KWH
Generation voltage – 3.3KV
-

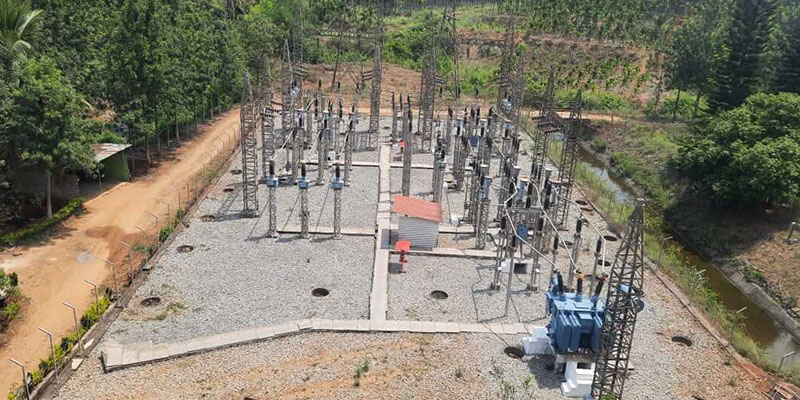

F. POWER EVACUATION:
H. POWER EVACUATION:
Connecting station – LILO System
Transmission line – 66 KV
I. ENERGY GENERATION:
Annual Generation – 7.3Mu
