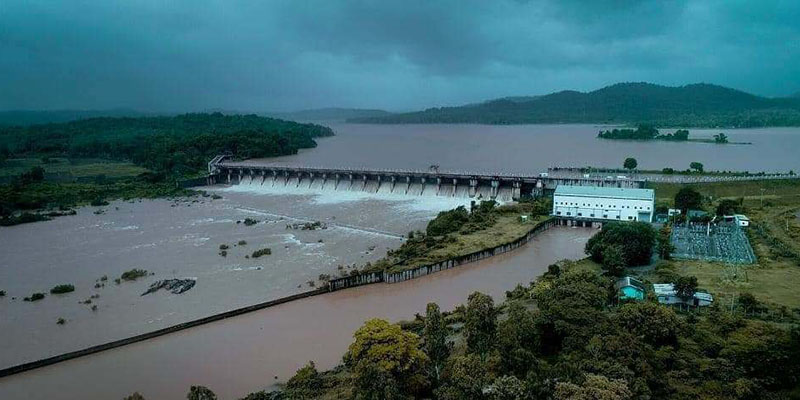

LOCATION OF PROJECT:PROJECT COMMISSIONED on 13.06.2014
SILENT FEATURES :-

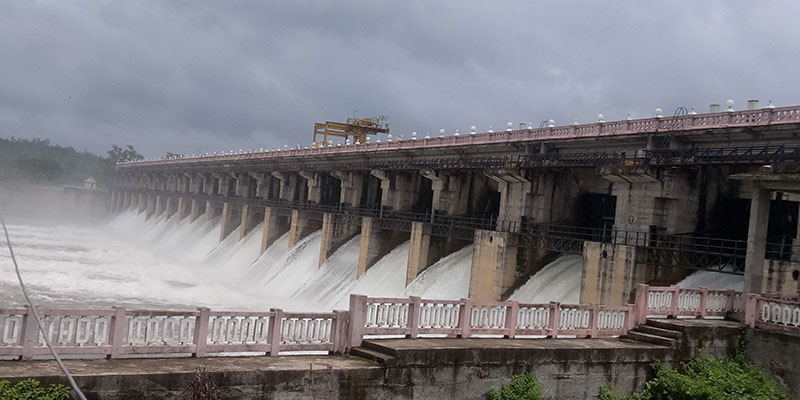

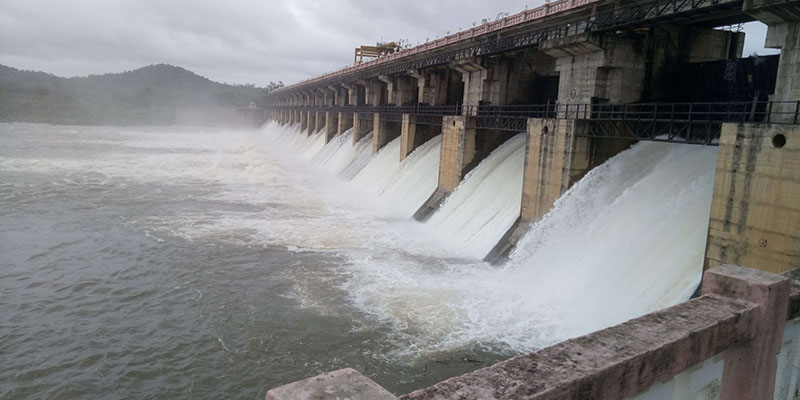

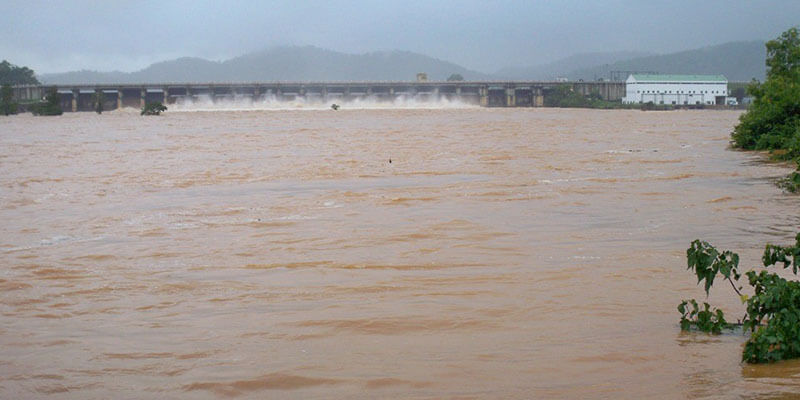

A. LOCATION:
- State – Karnataka
- District – Shivamogga
- Place – Toe of upper Tunga anicut
- River – Tunga
- Type – Dam
-
B. PENSTOCK
- Number – 3
- Material – steel
- Length – 62m
- Internal Diameter – 2x5m,1x3m
-

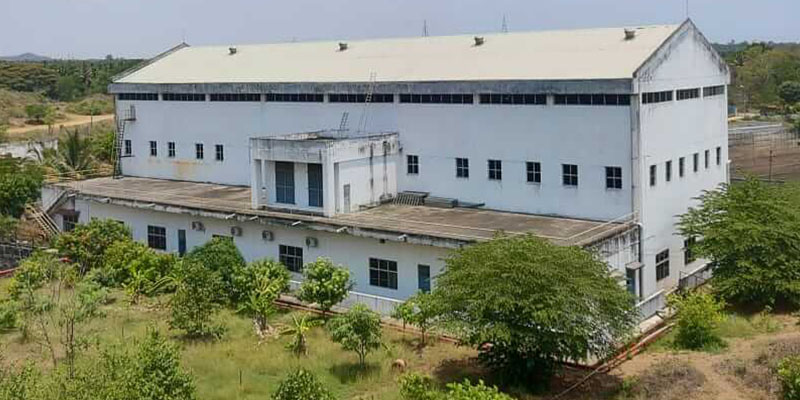

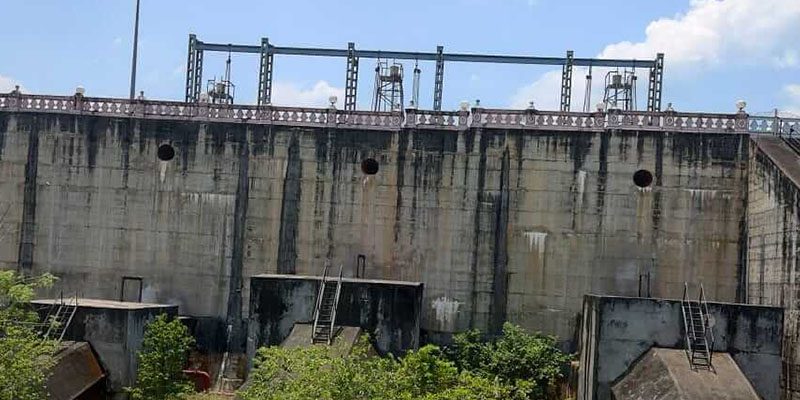

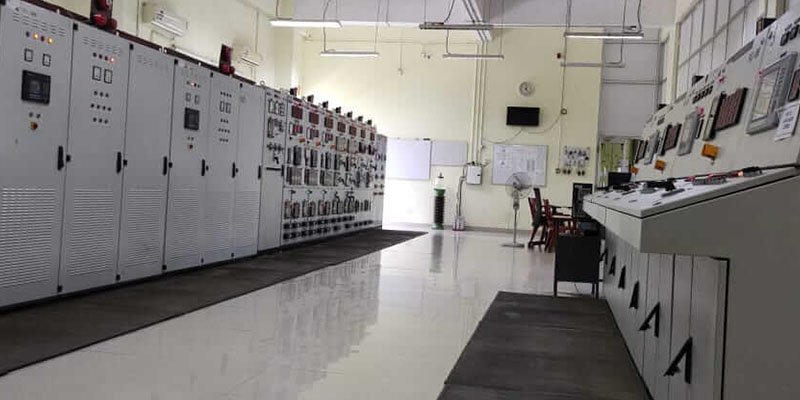

C. POWER HOUSE:
- Location – On left bank of Tunga river at upper Tunga anicut
- Installed capacity-24MW(2x10MW + 1x4MW)
- Power house size – 54mx18m
-

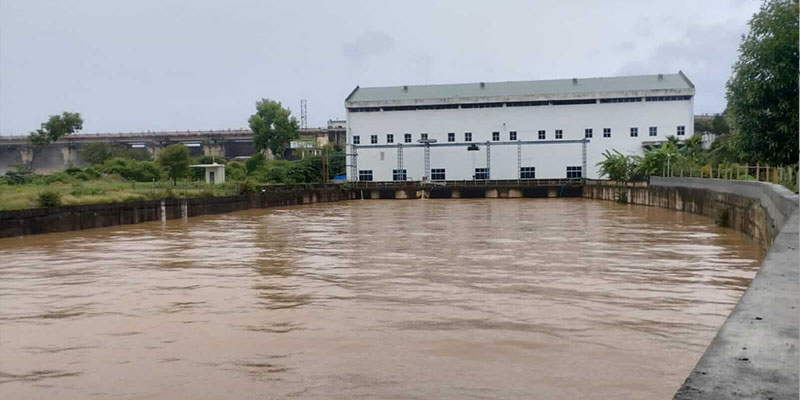

D. TAILRACE CHANNEL:
- Lenght – 666m
- Base width – 40m
-

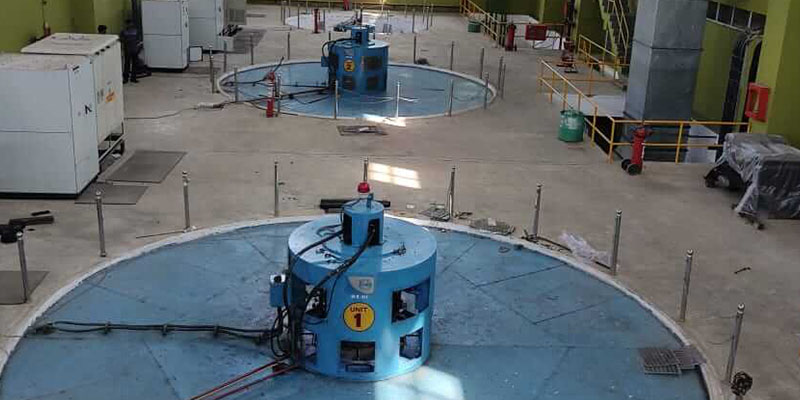

E. TG EQUIPMENT:
- Turbine number – 3
- Type – Vertical Kaplan
- Rated capacity – 2x10MW,1x4MW
- Rated Head – 18m
- Rated flow – 65m3/sec for 10MW units and 30m3/sec for 4MW unit
- Generation voltage – 11KV
-

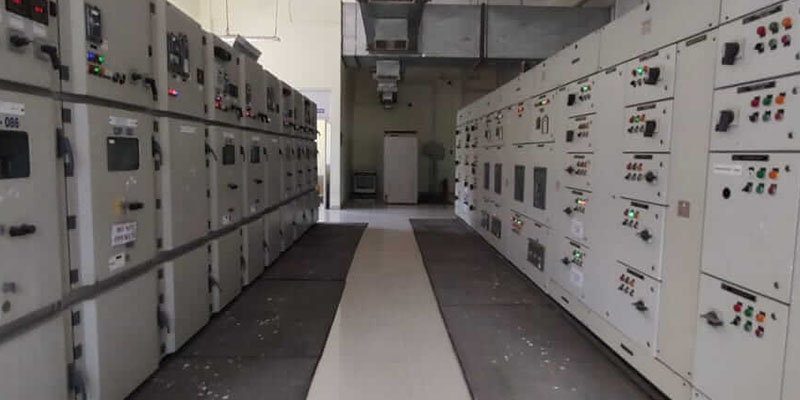

F. POWER EVACUATION:
- Connecting substation – 110KV Gajanur sub station
- Transmission line – 110 KV,1.6 km long G. ENERGY GENERATION:
- Annual Generation -78.47mu
